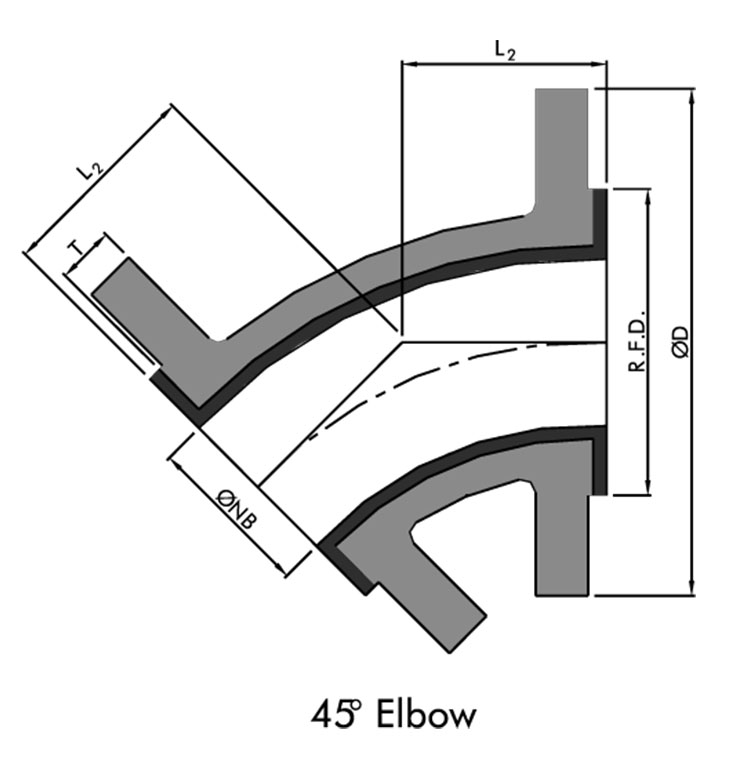

Elbow 45º Bend

Size Range: 25mm to 100mm

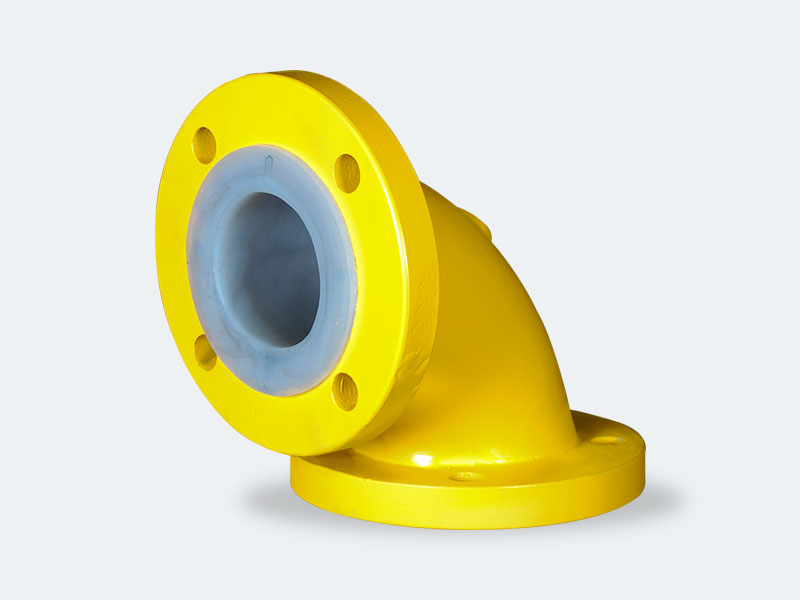

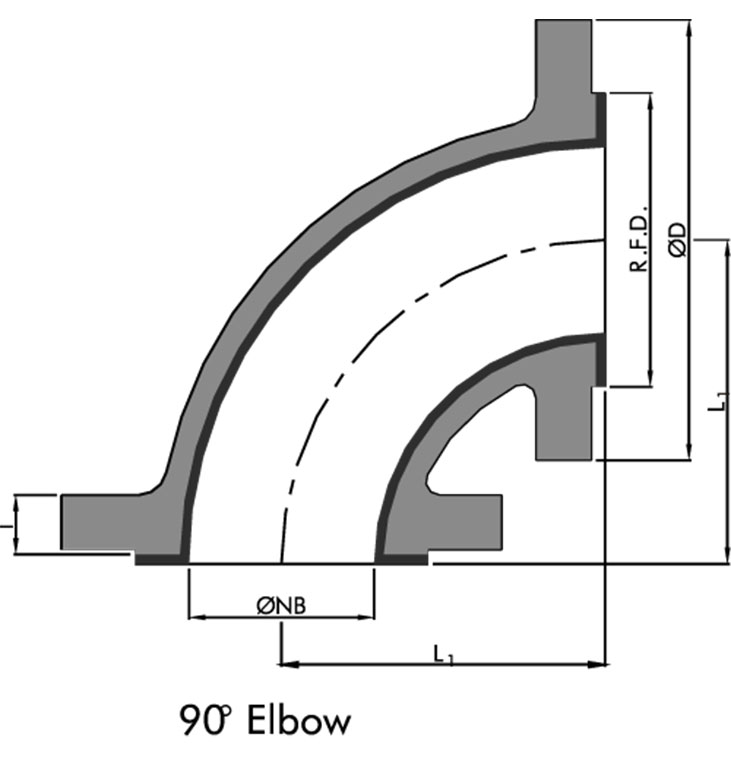

Elbow 90º Bend

Size Range: 25mm to 200mm



  • Lining Specification
  • Advantage
Other Lining Material PTFE, ETFE, ECTFE, PVDF, PP, HDPE
Lining Thickness Min. 3.0mm/4.0mm overall
Spark Test Body liners & all wetted parts are spark tested at 20,000 Volts

The body material is generally Cast Ductile Iron Alternatively we offer completely CF8 / CF8M Body and Bonnet.
